libs/ck-libs/liveViz/liveViz0.h File Reference

Go to the source code of this file.

Data Structures
struct	liveVizRequest
	A liveVizRequest describes the basics of a client image request. More...
struct	liveVizRequest3d
	Additional 3D data associated with a 3D LiveViz request. More...
class	liveVizConfig
	liveVizConfig describes the type of images available from this parallel server--images may be color or greyscale, be pushed to the client or pulled, and may come from a set of 3d axes or be simply 2d. More...
class	imageUnit
Typedefs
typedef unsigned char	byte
Functions
void	liveViz0Get (const liveVizRequest &req, void *data, int dataLen)
	Called when the client requests an image as described above.
void	liveViz0Deposit (const liveVizRequest &req, byte *imageData)
	Each call to liveViz, above, must eventually result in a call to this routine, which delivers an entire, finished image to the client.
void	liveViz0Init (const liveVizConfig &cfg)
	Begin responding to image requests under the given configuration.
void	liveViz0PollInit ()

---

Typedef Documentation

typedef unsigned char byte

Definition at line 14 of file liveViz0.h.

---

Function Documentation

void liveViz0Get	(	const liveVizRequest &	req,
		void *	data,
		int	dataLen
	)

Called when the client requests an image as described above.

You must implement this routine, which will be called from a single processor. data and dataLen are additional data supplied with the CCS request. This routine is called on the processor where the request arrives; this is normally processor 0.

Definition at line 74 of file liveViz.C.

References liveVizRequestMsg::buildNew(), clientGetImageCallback, and CkCallback::send().

Referenced by getImageHandler().

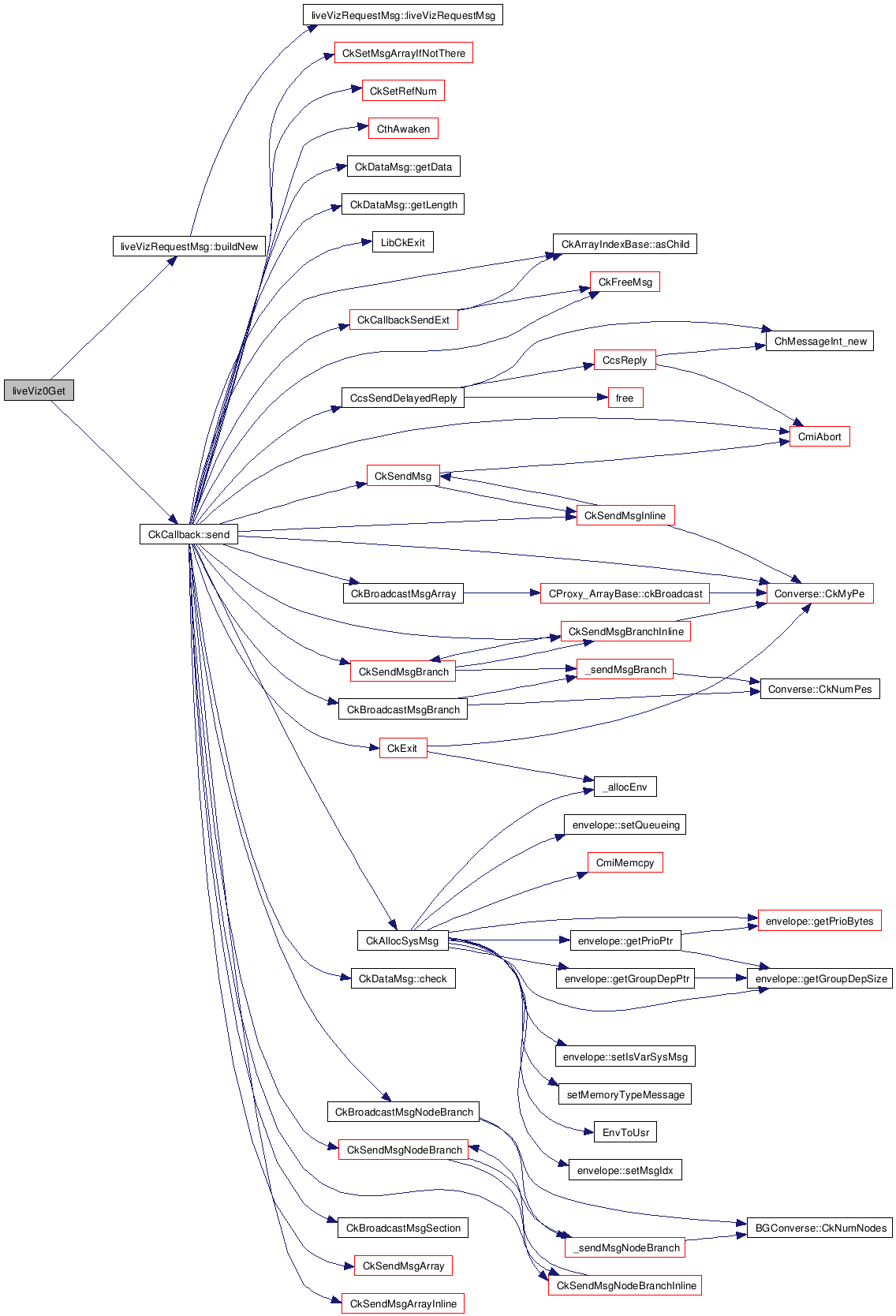

Here is the call graph for this function:

Here is the caller graph for this function:

void liveViz0Deposit	(	const liveVizRequest &	req,
		byte *	imageData
	)

Each call to liveViz, above, must eventually result in a call to this routine, which delivers an entire, finished image to the client.

Definition at line 265 of file liveViz0.C.

References CcsSendDelayedReply(), CmiPrintf(), liveVizRequest::compressionJPEG, liveVizRequest::compressionNone, liveVizRequest::compressionQuality, liveVizRequest::compressionRunLength, liveVizRequest::compressionType, data, liveVizConfig::getNetworkBytesPerPixel(), liveVizConfig::getVerbose(), liveVizRequest::ht, JPEGcompressImage(), len, liveVizRequest::replyToken, and liveVizRequest::wid.

Referenced by liveVizPollArray::liveVizPoll0Deposit(), liveVizPollArray::request(), and vizReductionHandler().

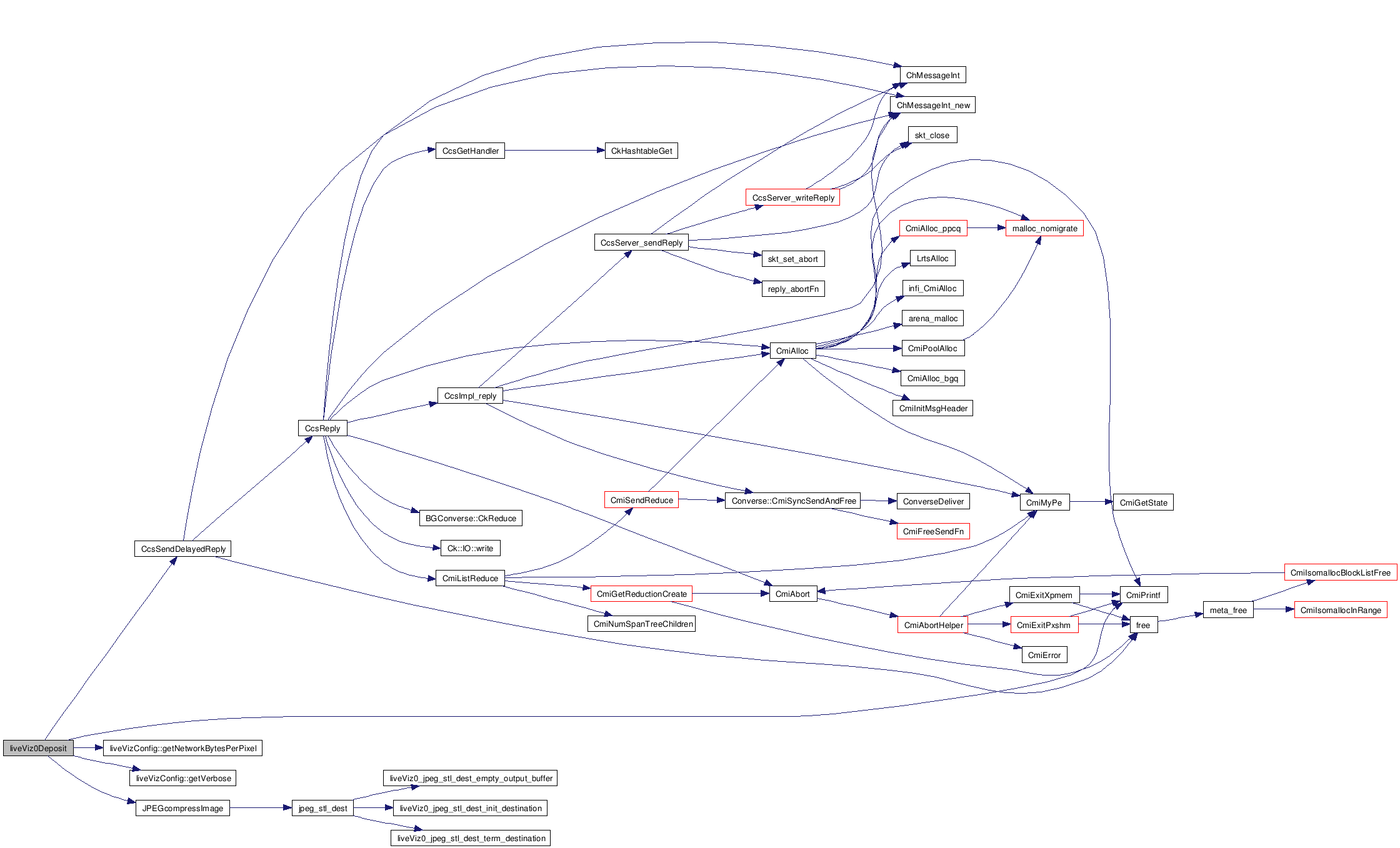

Here is the call graph for this function:

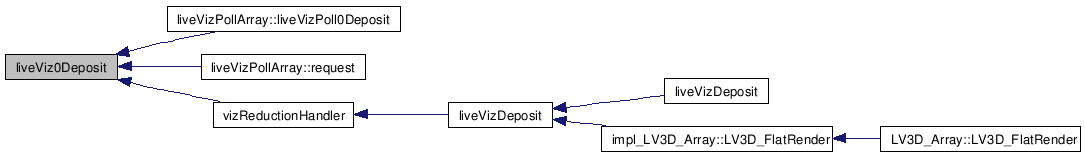

Here is the caller graph for this function:

void liveViz0Init

(

const liveVizConfig &

cfg

)

Begin responding to image requests under the given configuration.

liveViz0Init should be called exactly once on processor 0 when your program is ready to begin processing image requests.

Definition at line 307 of file liveViz0.C.

References CcsRegisterHandler(), CmiPrintf(), getImageConfigHandler(), getImageHandler(), and liveVizConfig::getVerbose().

Referenced by liveVizInitComplete().

Here is the call graph for this function:

Here is the caller graph for this function:

void liveViz0PollInit

(

)

Definition at line 315 of file liveViz0.C.

References CcsRegisterHandler(), CmiPrintf(), getImageHandler(), and liveVizConfig::getVerbose().

Referenced by liveVizPollInit().

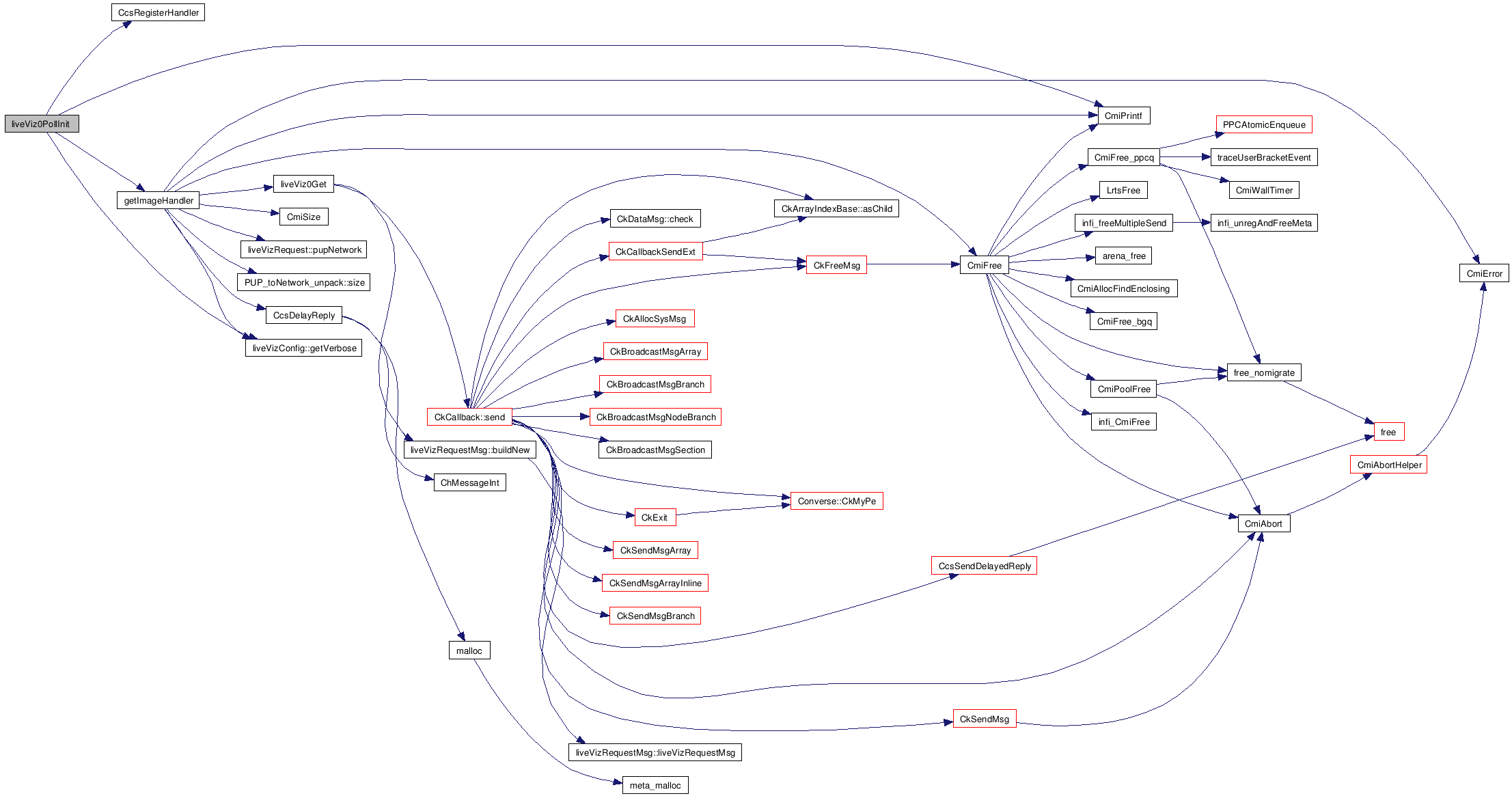

Here is the call graph for this function:

Here is the caller graph for this function:
