liveVizConfig Class Reference

liveVizConfig describes the type of images available from this parallel server--images may be color or greyscale, be pushed to the client or pulled, and may come from a set of 3d axes or be simply 2d. More...

#include <liveViz0.h>

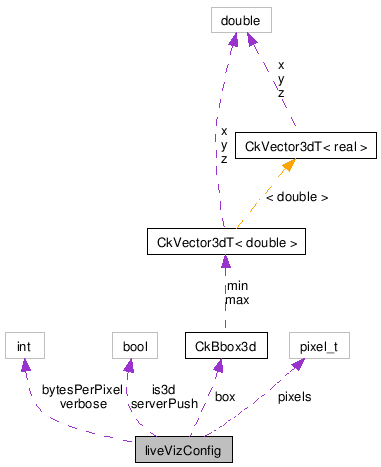

Collaboration diagram for liveVizConfig:

[legend]


Public Types
enum	pixel_t { pix_greyscale = 0, pix_color = 1, pix_float = 2 }
Public Member Functions
	liveVizConfig ()
	liveVizConfig (bool isColor, bool serverPush_)
	2D constructors:
	liveVizConfig (pixel_t pix, bool serverPush_)
	liveVizConfig (bool isColor, bool serverPush_, const CkBbox3d &box_)
	3D constructors:
	liveVizConfig (pixel_t pix, bool serverPush_, const CkBbox3d &box_)
void	moreVerbose (void)
	Increment the verbosity level on the server.
bool	getColor (void) const
	Extract configuration information:.
int	getBytesPerPixel (void) const
	Return the number of bytes per pixel used during assembly.
int	getNetworkBytesPerPixel (void) const
	Return the number of bytes per pixel used on the wire.
bool	getPush (void) const
bool	get3d (void) const
const CkBbox3d &	getBox (void) const
bool	getVerbose (int thanLevel) const
void	pupNetwork (PUP::er &p)
Private Member Functions
void	init (pixel_t pix, bool serverPush=false)
Private Attributes
pixel_t	pixels
int	bytesPerPixel
bool	serverPush
	If true, the server produces images regardless of whether the client asks for them; this is true for animating and batch-mode images.
bool	is3d
	If true, show 3d camera motion tools.
CkBbox3d	box
	If 3d, the viewed object's bounding box, universe coords.
int	verbose
	If nonzero, printf status info; higher numbers give more prints.

Detailed Description

liveVizConfig describes the type of images available from this parallel server--images may be color or greyscale, be pushed to the client or pulled, and may come from a set of 3d axes or be simply 2d.

Definition at line 62 of file liveViz0.h.

Member Enumeration Documentation

enum liveVizConfig::pixel_t

Enumerator:

pix_greyscale
pix_color
pix_float

Definition at line 65 of file liveViz0.h.

Constructor & Destructor Documentation

liveVizConfig::liveVizConfig ( ) [inline]

Definition at line 74 of file liveViz0.h.

References init(), and pix_greyscale.

Here is the call graph for this function:

liveVizConfig::liveVizConfig	(	bool	isColor,
		bool	serverPush_
	)			`[inline]`

2D constructors:

Definition at line 77 of file liveViz0.h.

References init(), pix_color, and pix_greyscale.

Here is the call graph for this function:

liveVizConfig::liveVizConfig	(	pixel_t	pix,
		bool	serverPush_
	)			`[inline]`

Definition at line 80 of file liveViz0.h.

References init().

Here is the call graph for this function:

liveVizConfig::liveVizConfig	(	bool	isColor,
		bool	serverPush_,
		const CkBbox3d &	box_
	)			`[inline]`

3D constructors:

Definition at line 85 of file liveViz0.h.

References box, init(), is3d, pix_color, and pix_greyscale.

Here is the call graph for this function:

liveVizConfig::liveVizConfig	(	pixel_t	pix,
		bool	serverPush_,
		const CkBbox3d &	box_
	)			`[inline]`

Definition at line 89 of file liveViz0.h.

References box, init(), and is3d.

Here is the call graph for this function:

Member Function Documentation

void liveVizConfig::moreVerbose ( void ) [inline]

Increment the verbosity level on the server.

Definition at line 95 of file liveViz0.h.

References verbose.

bool liveVizConfig::getColor ( void ) const [inline]

Extract configuration information:.

Definition at line 98 of file liveViz0.h.

References pix_color, and pixels.

int liveVizConfig::getBytesPerPixel ( void ) const [inline]

Return the number of bytes per pixel used during assembly.

Definition at line 100 of file liveViz0.h.

References bytesPerPixel.

Referenced by allocateImageMsg(), imageCombine(), imageCombineReducer(), liveVizDeposit(), and vizReductionHandler().

Here is the caller graph for this function:

int liveVizConfig::getNetworkBytesPerPixel ( void ) const [inline]

Return the number of bytes per pixel used on the wire.

Definition at line 102 of file liveViz0.h.

References pix_greyscale, and pixels.

Referenced by liveViz0Deposit(), and vizReductionHandler().

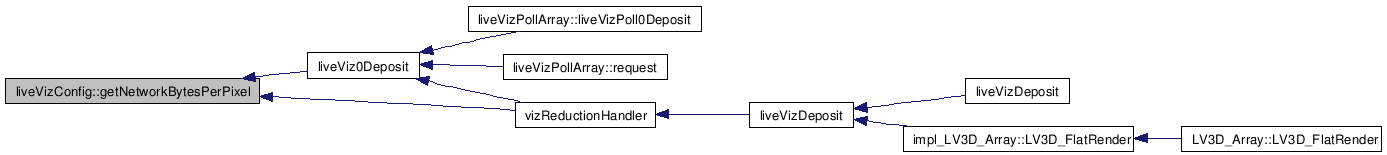

Here is the caller graph for this function:

bool liveVizConfig::getPush ( void ) const [inline]

Definition at line 103 of file liveViz0.h.

References serverPush.

bool liveVizConfig::get3d ( void ) const [inline]

Definition at line 104 of file liveViz0.h.

References is3d.

const CkBbox3d& liveVizConfig::getBox ( void ) const [inline]

Definition at line 105 of file liveViz0.h.

References box.

bool liveVizConfig::getVerbose ( int thanLevel ) const [inline]

Definition at line 106 of file liveViz0.h.

References verbose.

Referenced by getImageConfigHandler(), getImageHandler(), imageCombine(), imageCombineReducer(), liveViz0Deposit(), liveViz0Init(), liveViz0PollInit(), liveVizDeposit(), and vizReductionHandler().

Here is the caller graph for this function:

void liveVizConfig::pupNetwork ( PUP::er & p )

Definition at line 36 of file liveViz0.C.

References box, bytesPerPixel, is3d, CkBbox3d::max, CkBbox3d::min, pix_color, pix_greyscale, pixels, serverPush, and version.

Referenced by getImageConfigHandler(), and liveVizGroup::pup().

Here is the caller graph for this function:

void liveVizConfig::init	(	pixel_t	pix,
		bool	serverPush = `false`
	)			`[private]`

Definition at line 20 of file liveViz0.C.

References bytesPerPixel, CmiAbort(), is3d, pix_color, pix_float, pix_greyscale, pixels, serverPush, and verbose.

Referenced by liveVizConfig().

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

pixel_t liveVizConfig::pixels [private]

Definition at line 111 of file liveViz0.h.

Referenced by getColor(), getNetworkBytesPerPixel(), init(), and pupNetwork().

int liveVizConfig::bytesPerPixel [private]

Definition at line 112 of file liveViz0.h.

Referenced by getBytesPerPixel(), init(), and pupNetwork().

bool liveVizConfig::serverPush [private]

If true, the server produces images regardless of whether the client asks for them; this is true for animating and batch-mode images.

If false, the server will respond to client requests; this is true for viz-on-demand services. The client repeatedly asks for an image if this is set; if not set it only asks when the client's window size or viewpoint changes.

Definition at line 122 of file liveViz0.h.

Referenced by getPush(), init(), and pupNetwork().

bool liveVizConfig::is3d [private]

If true, show 3d camera motion tools.

Definition at line 124 of file liveViz0.h.

Referenced by get3d(), init(), liveVizConfig(), and pupNetwork().
