threadCollide Class Reference

Threaded collision client array--provides interface between threadCollideMgr and API routines. More...

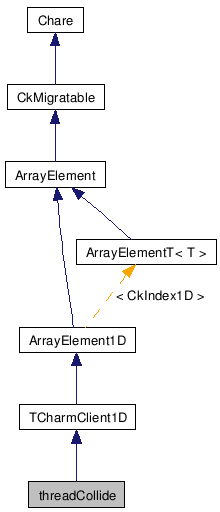

Inheritance diagram for threadCollide:

[legend]

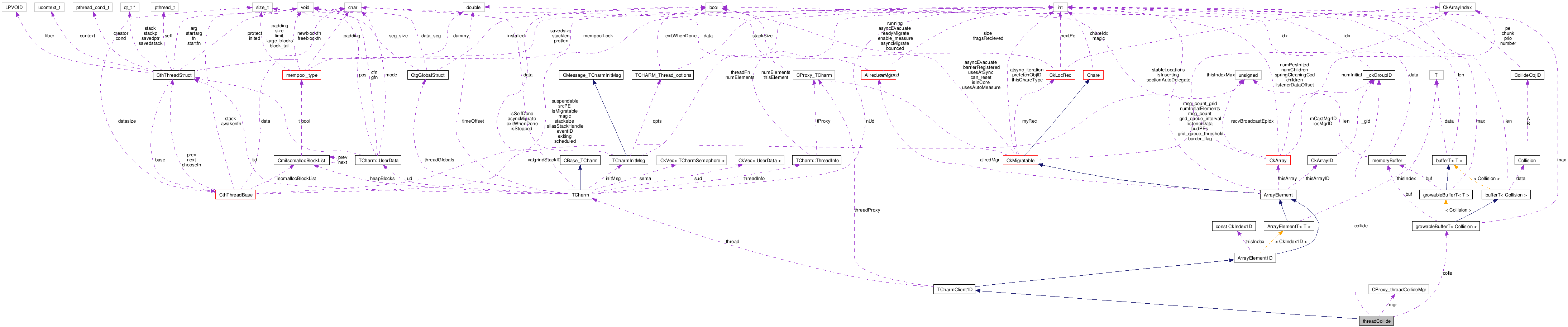

Collaboration diagram for threadCollide:

[legend]

Public Member Functions
	threadCollide (const CProxy_TCharm &threads, const CProxy_threadCollideMgr &mgr_, const CollideHandle &collide_)
	threadCollide (CkMigrateMessage *m)
void	arriving (void)
void	pup (PUP::er &p)
	Pack/unpack routine (called before and after migration).
void	ckJustMigrated (void)
void	leaving (void)
	~threadCollide ()
const CkArrayID &	getArrayID (void) const
void	contribute (int n, const bbox3d *boxes, const int *prio)
	Contribute to Collision and suspend the caller.
void	resultsDone (void)
	No more collisions will arrive this step.
Data Fields
growableBufferT< Collision >	colls
Protected Member Functions
virtual void	setupThreadPrivate (CthThread th)
Private Types
typedef TCharmClient1D	super
Private Attributes
CollideHandle	collide
CProxy_threadCollideMgr	mgr

---

Detailed Description

Threaded collision client array--provides interface between threadCollideMgr and API routines.

Definition at line 99 of file threadCollide.C.

---

Member Typedef Documentation

typedef TCharmClient1D threadCollide::super [private]

Definition at line 100 of file threadCollide.C.

---

Constructor & Destructor Documentation

threadCollide::threadCollide	(	const CProxy_TCharm &	threads,
		const CProxy_threadCollideMgr &	mgr_,
		const CollideHandle &	collide_
	)			[inline]

Wake up the blocked thread in COLLIDE_Init

Definition at line 110 of file threadCollide.C.

References arriving(), TCharm::semaPut(), and TCharmClient1D::thread.

Here is the call graph for this function:

threadCollide::threadCollide

(

CkMigrateMessage *

m

)

[inline]

Definition at line 119 of file threadCollide.C.

threadCollide::~threadCollide

(

)

[inline]

Definition at line 138 of file threadCollide.C.

References leaving().

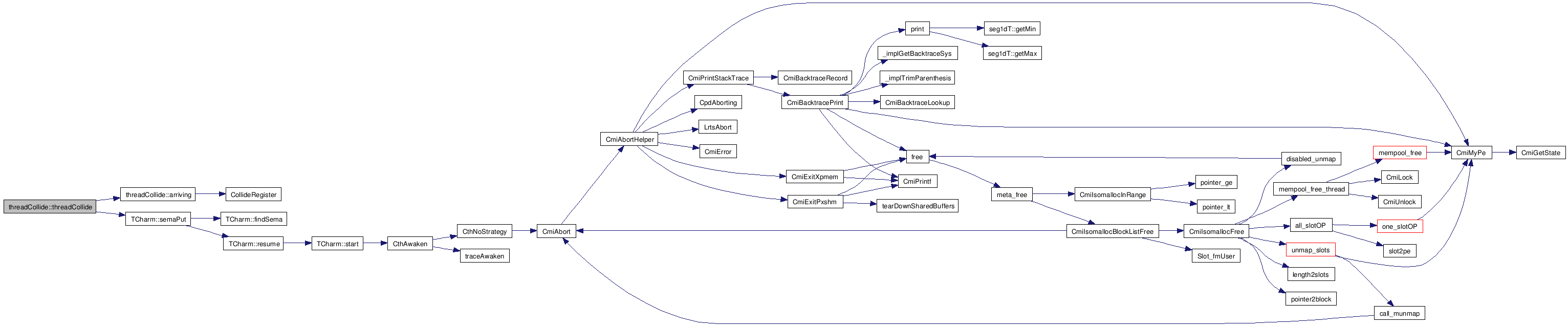

Here is the call graph for this function:

---

Member Function Documentation

virtual void threadCollide::setupThreadPrivate

(

CthThread

th

)

[inline, protected, virtual]

Implements TCharmClient1D.

Definition at line 106 of file threadCollide.C.

void threadCollide::arriving

(

void

)

[inline]

Definition at line 121 of file threadCollide.C.

References collide, CollideRegister(), mgr, and ArrayElementT< CkIndex1D >::thisIndex.

Referenced by ckJustMigrated(), and threadCollide().

Here is the call graph for this function:

Here is the caller graph for this function:

void threadCollide::pup

(

PUP::er &

p

)

[inline, virtual]

Pack/unpack routine (called before and after migration).

Reimplemented from TCharmClient1D.

Definition at line 125 of file threadCollide.C.

References collide, mgr, and PUP::pup().

Here is the call graph for this function:

void threadCollide::ckJustMigrated

(

void

)

[inline, virtual]

Reimplemented from TCharmClient1D.

Definition at line 130 of file threadCollide.C.

References arriving(), and TCharmClient1D::ckJustMigrated().

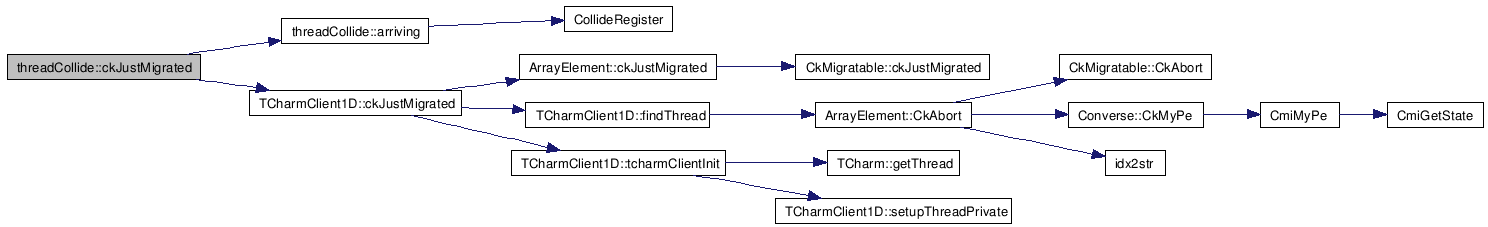

Here is the call graph for this function:

void threadCollide::leaving

(

void

)

[inline]

Definition at line 134 of file threadCollide.C.

References collide, CollideUnregister(), mgr, and ArrayElementT< CkIndex1D >::thisIndex.

Referenced by ~threadCollide().

Here is the call graph for this function:

Here is the caller graph for this function:

const CkArrayID& threadCollide::getArrayID

(

void

)

const [inline]

Definition at line 141 of file threadCollide.C.

References ArrayElement::thisArrayID.

Referenced by COLLIDE_Init().

Here is the caller graph for this function:

void threadCollide::contribute	(	int	n,
		const bbox3d *	boxes,
		const int *	prio
	)			[inline]

Contribute to Collision and suspend the caller.

Definition at line 145 of file threadCollide.C.

References collide, CollideBoxesPrio(), TCharm::suspend(), ArrayElementT< CkIndex1D >::thisIndex, and TCharmClient1D::thread.

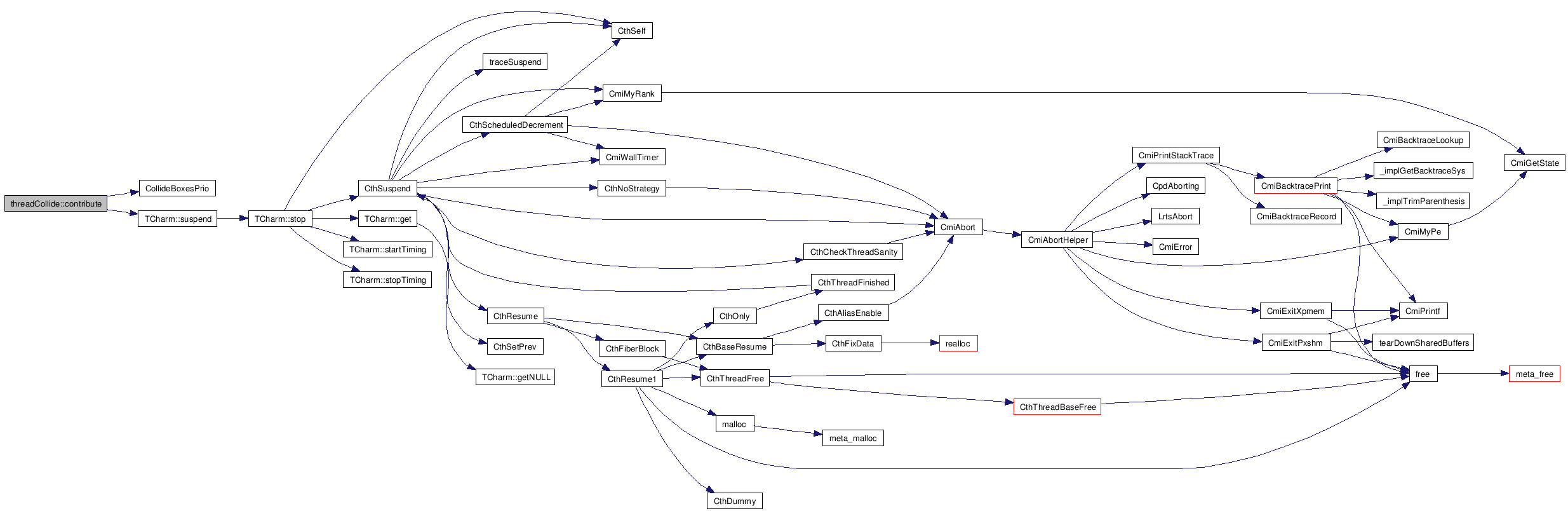

Here is the call graph for this function:

void threadCollide::resultsDone

(

void

)

[inline]

No more collisions will arrive this step.

Definition at line 152 of file threadCollide.C.

References TCharm::resume(), and TCharmClient1D::thread.

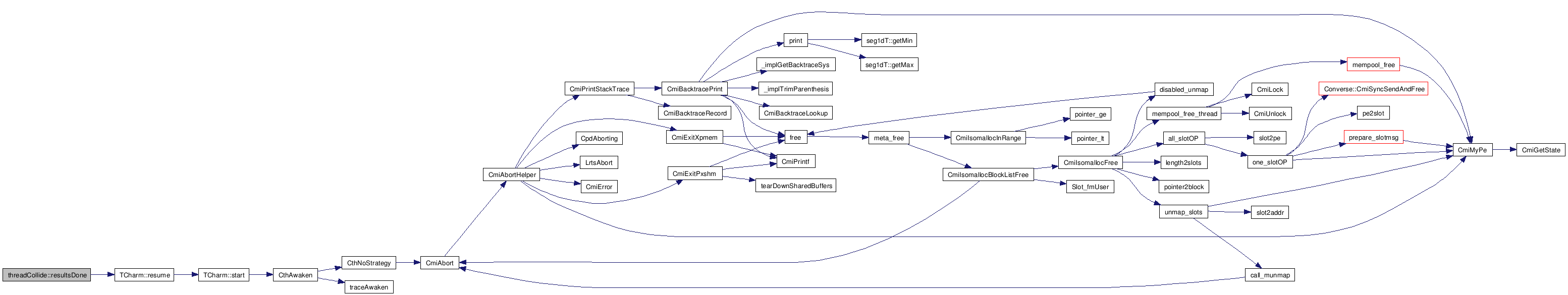

Here is the call graph for this function:

---

Field Documentation

CollideHandle threadCollide::collide [private]

Definition at line 102 of file threadCollide.C.

Referenced by arriving(), contribute(), leaving(), and pup().

CProxy_threadCollideMgr threadCollide::mgr [private]

Definition at line 104 of file threadCollide.C.

Referenced by arriving(), leaving(), and pup().

growableBufferT<Collision> threadCollide::colls

Definition at line 108 of file threadCollide.C.

Referenced by threadCollideMgr::sift().

---

The documentation for this class was generated from the following file:

• libs/ck-libs/collide/threadCollide.C
