LBCommTable Class Reference
[Charm++ Load Balancing Framework]

#include <LBComm.h>

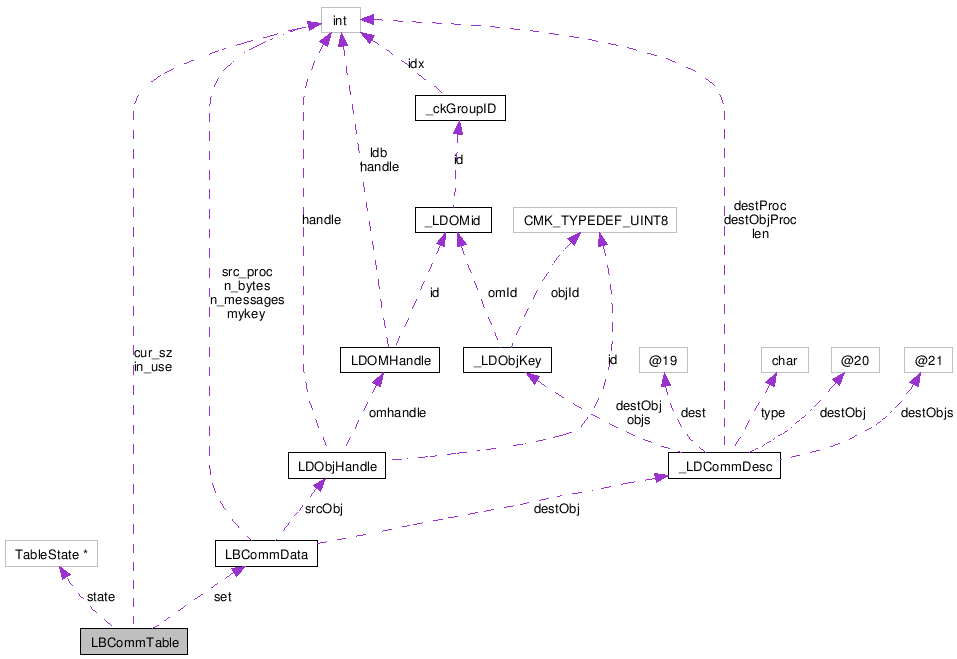

Collaboration diagram for LBCommTable:

[legend]

Public Member Functions
	LBCommTable ()
	~LBCommTable ()
LBCommData *	HashInsert (const LBCommData &data)
LBCommData *	HashInsertUnique (const LBCommData &data)
LBCommData *	HashSearch (const LBCommData &data)
int	CommCount ()
void	GetCommData (LDCommData *data)
void	GetCommInfo (int &bytes, int &msgs, int &withinpebytes, int &outsidepebytes, int &num_nghbor, int &hops, int &hopbytes)
int	useMem ()
Private Types
enum	{ initial_sz = 1 }
enum	{ initial_sz = 1 }
enum	TableState { nil, InUse }
Private Member Functions
void	NewTable (int _sz)
void	Resize ()
Private Attributes
LBCommData *	set
TableState *	state
int	cur_sz
int	in_use

---

Detailed Description

Definition at line 98 of file LBComm.h.

---

Member Enumeration Documentation

anonymous enum [private]

Enumerator:

initial_sz

Definition at line 131 of file LBComm.h.

anonymous enum [private]

Enumerator:

initial_sz

Definition at line 133 of file LBComm.h.

enum LBCommTable::TableState [private]

Enumerator:

nil
InUse

Definition at line 135 of file LBComm.h.

---

Constructor & Destructor Documentation

LBCommTable::LBCommTable

(

)

[inline]

Definition at line 101 of file LBComm.h.

References initial_sz, and NewTable().

Here is the call graph for this function:

LBCommTable::~LBCommTable

(

)

[inline]

Definition at line 105 of file LBComm.h.

References state.

---

Member Function Documentation

int LBCommTable::CommCount

(

)

[inline]

Definition at line 113 of file LBComm.h.

References in_use.

Referenced by LBDB::CommDataCount().

Here is the caller graph for this function:

void LBCommTable::NewTable

(

int

_sz

)

[inline, private]

Definition at line 119 of file LBComm.h.

References cur_sz, in_use, nil, and state.

Referenced by LBCommTable(), and Resize().

Here is the caller graph for this function:

int LBCommTable::useMem

(

)

[inline]

Definition at line 141 of file LBComm.h.

References cur_sz.

Referenced by LBDB::useMem().

Here is the caller graph for this function:

---

Field Documentation

LBCommData* LBCommTable::set [private]

Definition at line 136 of file LBComm.h.

TableState* LBCommTable::state [private]

Definition at line 137 of file LBComm.h.

Referenced by GetCommData(), GetCommInfo(), HashInsert(), HashSearch(), NewTable(), Resize(), and ~LBCommTable().

int LBCommTable::cur_sz [private]

Definition at line 138 of file LBComm.h.

Referenced by GetCommData(), GetCommInfo(), HashInsert(), HashSearch(), NewTable(), Resize(), and useMem().

int LBCommTable::in_use [private]

Definition at line 139 of file LBComm.h.

Referenced by CommCount(), HashInsert(), and NewTable().

---

The documentation for this class was generated from the following files:

• ck-ldb/LBComm.h
• ck-ldb/LBComm.C
